Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line

Name: Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Brand: Cosmati
Price: 4 USD

Wholesale Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line from china suppliers

dimension(l*w*h) : L1250 * W999 * H1760 mm

machinery test report : Provided

filling nozzle : 2, 4

Packaging Details : wooden cases

Voltage : 110 V, 220 V

video outgoing-inspection : Provided

warranty : 1 Year

filling accuracy : ±1%

Product name : rotary perfume filling machine perfume filling line

Main functions : Cleaning+Filling+Crimping+Collaring

packaging type : Bottles, Other

Weight (KG) : 1000

Filling nozzles : 2 vacuum filling nozzles+1 vacuum suction nozzle

MOQ : 1

driven type : Electric

key selling points : High Productivity

After-sales Service Provided : Video Technical Support, Field installation, commissioning and training, Online support, Field Maintenance and Repair Service, Free Spare Parts

Bottle type : PET Plastic Bottle, Glass Bottle

Supply Ability : 10000 set

Price : $4,000-5,000

application : Commodity, Chemical, Cosmetic

Filling Volume : 200mL, 100mL

filling material : Water, Oil, Other, perfume

packaging material : Plastic, Glass, Other

Control : PLC+ Touch Screen

Place of Origin : Guangdong, China

Production Capacity : 20-40 bottles/min

Brand Name : Cosmati

core components : Motor, Pressure Vessel, Pump, PLC, Engine, Other

Conveyor : 1260mm

automatic grade : Automatic

Keywords : rotary perfume filling machine

Delivery Time : 7 work days

Payment Terms : TT

Mold : 20 pcs

Material : Stainless Steel 304/316L

Contact Now

COSMATI Rotary Fully Automatic 5-in-1 Perfume Bottle Cleaning Filling Crimping Collaring Collecting Machine

Introduction

This machine can be used for toilet water, perfume, toner and other water-based materials. It adopts piston filling and negative pressure filling methods. The filling of the product is measured by the height of the liquid level, the filling quantity is accurate, the filling parts are easy to disassemble and assemble, and the adjustment is convenient.

Features

1.It is suitable for any spray pump bottle. Just need to adjust the model when the product is replaced;

2.The whole machine is made of sanitary grade stainless steel. It’s clean and hygienic.

3.This machine uses programming control (PLC) human machine interface (HMI) technology.

4.It is integrates with imported photoelectric tracking switch,motor and pneumatic.Reasonable design, good stability, accurate quantitative, manual bottle placement, stable operation and convenient washing and dismounting make this automatic machine to be your best choice.

Capacity	960-1920 BPH
Filling range	10-300ml can be customized
Filling accuracy	±1%
Applicable Bottle Height	20-300mm
Air Source	5-6kgf/cm2
Dimension	L1250 W1000 H1760 mm
Filling nozzles	2 PCS filling nozzles + 1 PC vacuum suction nozzle
Voltage	1P/220V/50Hz, 2.5KW
Weight	1000KGS
Adjustable mold	20 PCS
Machine cover material	SUS304
Conveyor length	1260mm
Air cylinder	Japan SMC
PLC and Touch Screen	Germany
Fiber	Japan KEYENCE

Process Flow

①Manually put the perfume bottle→②Auto Air cleaning→③Auto liquid vacuum filling→④Manual put the spray pump→⑤Pre-crimping+Auto crimping→⑥Manual put the collar→⑦Auto collaring(pressing cap)→⑧Automatic outputting

Details Images

Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line

Perfume Production Line

Raw Water Tank-Water Treatment Equipment-Pure Water Tank-Perfume Chiller-Perfume Storage Tank-Bottle Washer-Perfume Filling Machine-Perfume Crimping Machine-Perfume Collaring Machine-Labeling Machine-Inkjet Printer

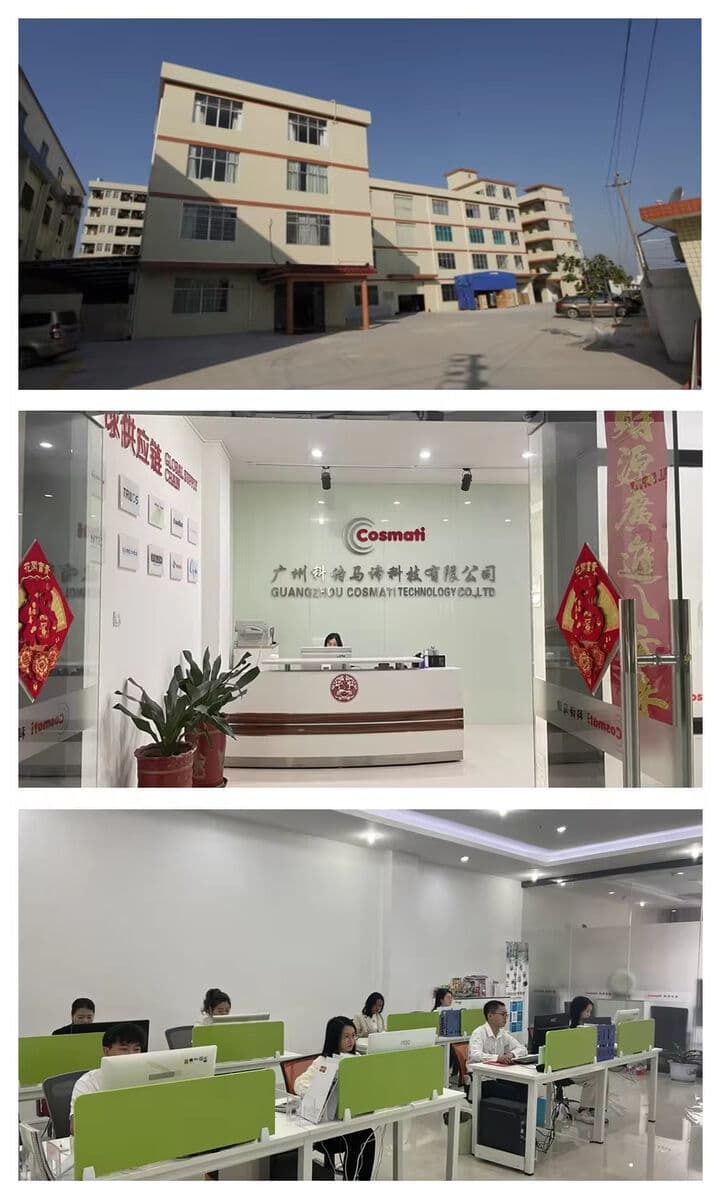

Company Profile

Trade show participation

Packaging & shipping specifications

Application

FAQ

1. What products can this perfume filling machine fill?

The machine is mainly designed for perfume, fragrance, essential oil and other low-viscosity liquid products.

2. Is this machine fully automatic?

Yes. The machine adopts a fully automatic rotary operation system, including cleaning, filling, crimping, collaring and collecting functions.

3. What filling volume can the machine handle?

The standard filling volumes are 100ml and 200ml. Other filling ranges can be customized according to customer requirements.

4. What is the filling accuracy?

The filling accuracy can reach ±1%, depending on the liquid characteristics and machine configuration.

5. How many filling nozzles does the machine have?

The machine can be configured with 2 or 4 filling nozzles according to production capacity requirements.
